FTKF35XV16MAA – 1 Ton 5 Star High ISEER Inverter Split AC Daikin

Home | Daikin Inverter - 5 Star | Daikin FTKF Series | Daikin 1.0 Ton Inverter 5 Star (FTKF35XV16MAA)

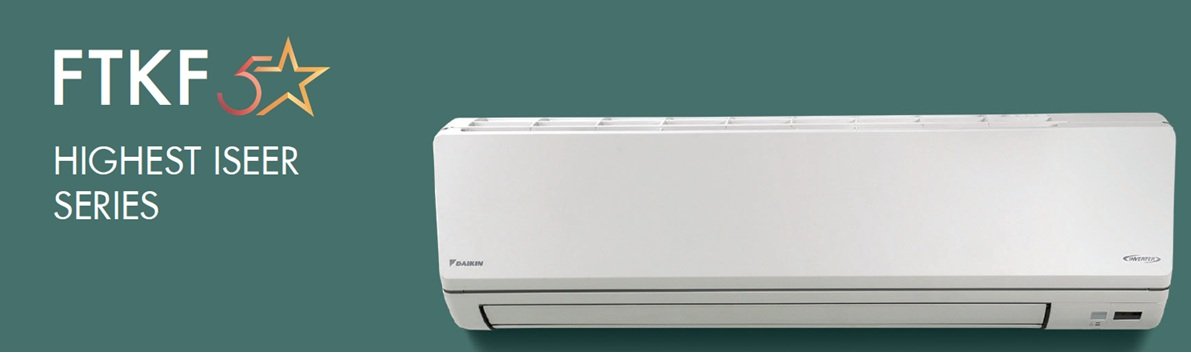

Daikin 1.0 Ton Hi-End Inverter 5 Star Split Airconditioner

Daikin FTKF35XV16MAA 1.0 Ton Inverter 5 Star (Highest ISEER & High Ambient) Split Air Conditioner

  • icon image Capacity : 1.0 Ton
  • icon image ISEER Rank / ISEER : Inverter 5 Star / 6.6
  • icon image Cooling Capacity (kW) : 3.5 (1.0 ~ 4.3)
  • icon image Cooling Capacity (Btu/h) : 11,943 (3,412 ~ 14,672)
  • icon image Annual Power consumption (kWh) : 475.37
  • icon image Cooling Capacity @ 46deg;C : 100%
MRP : ₹ 66900
For a Best Price :

We are an Authorised Daikin Airconditioning Solutions Plaza (Exclusive Daikin Airconditioner Sales & Service Dealers) in Hyderabad. We Provide the Competitive prices & best Post-sale services to our customers.


If you are planning to Buy an Daikin FTKF35XV16MAA 1.0 Ton Inverter 5 Star (Highest ISEER & High Ambient) Split Air Conditioner in Hyderabad, please call US ✆ 9885820595 ; for Other Cities please call Daikin Customer Care ✆ 011-40319300 | 18601803900

Key Features - Daikin FTKF35XV16MAA 1.0 Ton Inverter 5 Star (Highest ISEER & High Ambient) Split Air Conditioner

  • Daikin Patented Swing Compressor
  • Highest ISEER 6.60 - 18% more energy efficiency compared to 5 Star AC with ISEER 5.6
  • Dew Clean Technology : It auto cleans the coils of indoor unit heat exchanger
  • Triple Display : IDU Display shows %age Power consumption, Temperature (Set & Room) and Error code
  • Filter Clean Indicator - Ensure timely filter upkeep
  • Air Throw *16 Meters, 4 Way Swing , PM 1.0 Filter, 3 Layer Filter
  • Cools upto 55° C - Comfortable cooling at extreme conditions
  • Hepta Sensa (7 Sensors located on IDU and ODU)
  • DNNS SELF HEAL COATING - has self healing properties that compensates and covers the cracks
  • Anti-corrosion treatment on Indoor and Outdoor heat exchanger tubes (BTA Oil)
  • Neodymium magnet is 10 times stronge than normal ferrite magnet - lower noise, better comfort and longer motor life
  • Cooling Capacity @ 46°C : 100%
  • Auto Variable Speed
  • Voltage Range (Stabilizer Inside) : (130 - 285 V)

Technical/Functional Specification

Series FTKF Series
Indoor Model No FTKF35XV16MAA
Outdoor Model No RKF35XV16MAA
Power supply intake Outdoor unit
Cooling Capacity Rated Full/Half (min ~ max) kW 3.52 (1.5 ~ 5.0)
Cooling Capacity Rated Full/Half (min ~ max) Btu/h 12,010 (5,118 ~ 17,060)
Cooling Capacity @ 46°C % 100
Annual Power Consumption kWh 413.07
ISEER / ISEER Rank 6.60 / Inverter - 5 Star
Voltage Range V 130 - 285
Power Supply V, Hz 1 , 230, 50
Operating Current - Cooling A 3.17
Filters PM 1.0 Filter, 3 Layer Filter
Self Diagnosis Yes
Sleep Mode Yes
Timer Yes
Auto Restart Yes
Other Convenience Features Power airflow dual flaps ; 3D Air flow ; Wide-Angle Louvers ; Vertical auto-swing (up & down) ; New Coanda Airflow ; Power Chill Operation ; Econo Mode ; Smell proof operation ; Auto-Restart after Power Failure, Dew Clean

Indoor Unit

Front Panel Colour Pure White
Dimensions (H x W x D) 298 x 885 x 229
Airflow rate Feet³/min (Cfm) 512
Airflow rate m³/min (Cmm) 14.5
Sound Levels (H / MH / M / ML / L / SL) 44 / 41 / 39 / 36 / 33 / 30

Outdoor Unit

Casing Colour Ivory White
Compressor Type Swing Compressor
Dimensions (HxWxD) mm 595 x 845 x 300
Machine Weight (Kg) 29.5
Breaker size (A) 15
Piping Length - Charge-less (m) 10
Piping Length - Max. length (m) 15
Piping Length - Max. height (m) 12
Piping Connection (Gas/Liquid) mm (inch) ∅9.5/∅6.4 (3/8" ; 1/4")
Operating Ambient Temperature Range Cooling (Min ~ Max) °CDB 20° ~ 56°

Installation & Service Warranty

Installation Details

Installation Charges: Rs. 1,500; Outdoor Stand (L-Brackets): Rs. 750

Installation will be done in 2 - 3 days from the date of purchase.

Part of the Standard Installation of AC Covers only

Split AC:-

  • Drilling of hole in Brick wall for taking out the pipes. Fixing hole sleeve & Cap.
  • Fixing the Indoor and Outdoor Unit.
  • Connecting Indoor and Outdoor units using Standard Kit provided by Manufacturer (at an additional cost, unless specified otherwise).
  • Wrapping the pipe with seasoning tape. Connection to Stabilizer or Power point in the range of Power Cord Provided by Manufacture.
  • Temperature/Performance Check & Demo and Maintenance tips filling the details in warranty card.

Not covered part of the Installation:-

  • If Copper Piping, Drain Pipe, Electrical Cable or AC Plug Top consumes extra, we charge separately.
  • Plumbing and Masonry Work. Wiring extension from Meter to site, Power point/MCB fitting and any other electrical work,Carpentry work.
  • Dismantling/Shifting of Old AC's Masonry, Core Cutting Fabrication and Electrical.
Service Details 2 Free Services of AC within 1 Year from the date of Installation.
Warranty Details DAIKIN AC would be covered under warranty if customer purchase a product through an Authorized DAIKIN Airconditioner Dealer Only.
The Daikin Split Air conditioner (hereinafter referred to as “Product”) High wall non-inverter comes with 1 Year (12 months) warranty from the date of Installation or 15 months warranty from the date of Invoice / dispatch, whichever is earlier (“Initial Warranty Period”) on all parts except front grill & plastic parts and, thereafter 4 years additional warranty (**) on the compressor.
